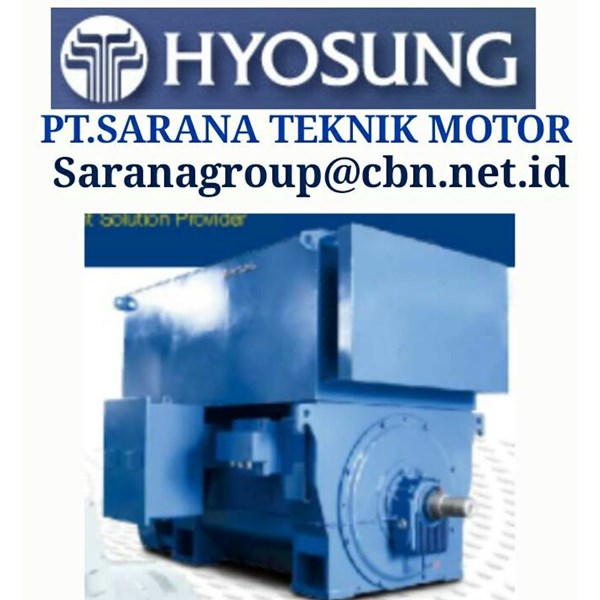

HYOSUNG DC MOTOR

EMAIL : SARANATEKNIK@CBN.NET.ID



Hyosung's DC motor has a complete all-in-one type lamination structure designed to include a stator, primary pole, and interpole. Therefore, it is very strong mechanically and is generally used as a driving motor for a variable-speed continuous process, which requires high speed variability and precision.

Features



Use of quality materials and high insulation system

    Applies H-class insulation to the stator and armature

    Adopts a high-class commutator and brush

    Polyester-based varnish vacuum impregnation

Variety of products with excellent operational features

    Adopts IEC 34 standard specifications

    Various cooling methods and protection classes

    Easy speed control and good torque characteristics

Application



    General and steel industries

    Cranes and press machines

    Molding extrusion machines, cement plants, wire drawing and stranding machines

    Ski lifts, ropeways and stage equipment

Scope of Productions



    Output: 1.5kW ~ 1,250kW

    Cooling method: IC06, IC01, IC17, IC37, IC410, IC416, IC666, IC86W dinamo

    Protection class: IP23S, IP44, IP54
