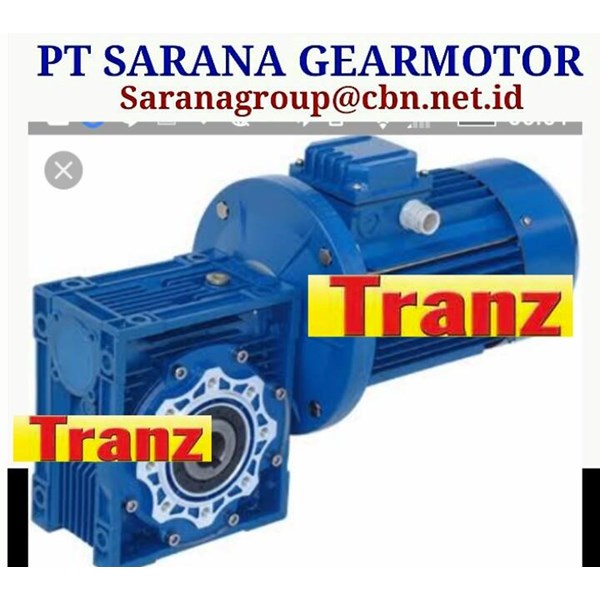

WORM GEAR TRANZ
NMRV Series
NMRV Series - Worm Geared Motors | Haumea
logo
Sizes: 025 -030-040-050-063-075-090-105
Available versions: NMRV - fitted for motor coupling, NRV - with input shaft, NMRL - with torque limiter
Power up to 15 kW
Patented case with modern design
Aluminuium units are supplied complete with synthetic oil which allows universal position mounting, with no need to modify lubricant quantity. Moreover units without plugs reduce the risk of oil oxidation and contamination.
Reduction ratios between 5 and 100
Max torque 1.550 Nm and admissible radial loads ma
Cases up to 105 in die-cast aluminium alloy and over 110 in G200 grey cast iron
Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10)
Ground worm profile ZI (UNI4760)
Excellent mechanical strength while being especially lightweight
Load capacity calculated to BS721-83 and verified according to Niemann
Size 030 and over are painted with RALblue epoxy-polyester powder in accordind to DIN
PC, pre-stage reduction units available for motor power up to 2,2kW and size up to
Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRV+NRV, PC+NMRV
Automated manufacturing process not only guaratees fast service, but also reliability and quality
Options: torque arm, output flange, output shaft kit, cover, double extention high speed sha
