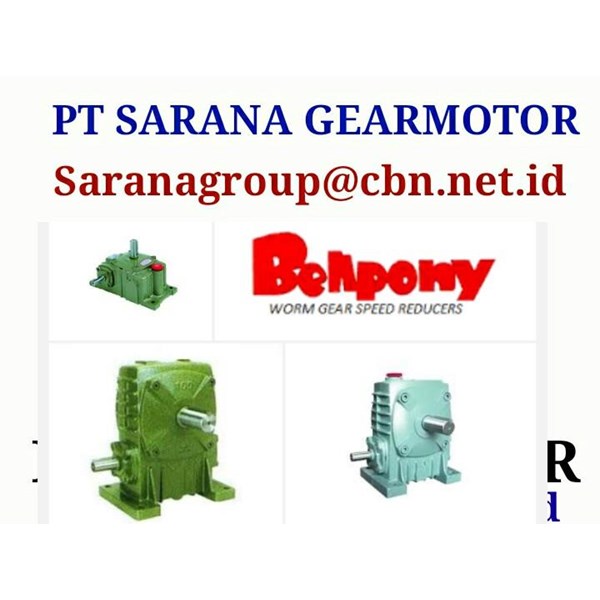

BELLPONY PA - Single-stage Worm Gear Speed Reducers Print E-mail
Bellpony Gear Box
PA Series
Single-stage Worm Gear Speed Reducers
Catalog
Specification and Application
The PA series is widely used as a universal unit. The worm and wheel are constantly immersed in lubricating oil, making it especially suitable for low speed operation.
Bellpony Gear PA
Type
PA 9 ~ 60
kW
0.11 ~ 53.89 kw
RPM
600 ~ 1800 rpm
Ratio
Type Input Shaft Output Shaft 10 ~ 60
[mm] [mm]
PA 9 12 14 Output Torque
PA 12 12 17 1.94 ~ 673 kg-m
PA 15 15 22
PA 18 18 28
PA 22 22 32
PA 25 25 38
PA 30 30 45
PA 35 35 55
PA 40 40 60
PA 45 45 65
PA 50 50 75
PA 60 60 8035353
