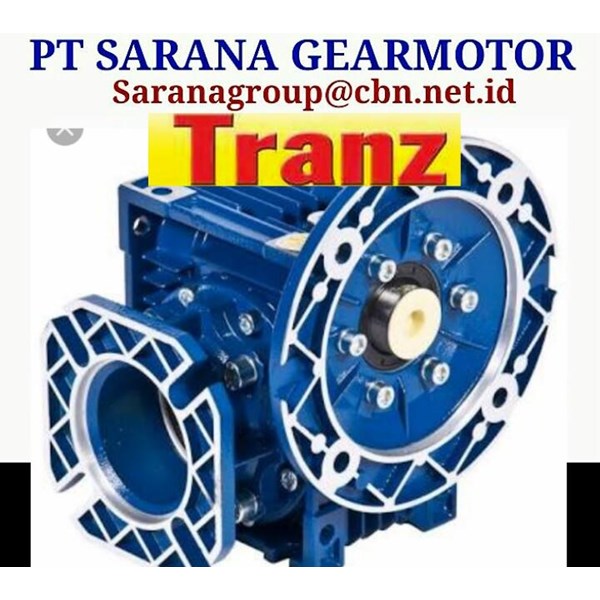

WORM GEAR TRANZ



NMRV Series

NMRV Series - Worm Geared Motors | Haumea

logo



    Sizes: 025 -030-040-050-063-075-090-105-110-130-150

    Available versions: NMRV - fitted for motor coupling, NRV - with input shaft, NMRL - with torque limiter

    Power up to 15 kW

    Patented case with modern design

    Aluminuium units are supplied complete with synthetic oil which allows universal position mounting, with no need to modify lubricant quantity. Moreover units without plugs reduce the risk of oil oxidation and contamination.

    Reduction ratios between 5 and 100

    Max torque 1.550 Nm and admissible radial loads max 16.500 N

    Cases up to 105 in die-cast aluminium alloy and over 110 in G200 grey cast iron

    Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10)

    Ground worm profile ZI (UNI4760)

    Excellent mechanical strength while being especially lightweight

    Load capacity calculated to BS721-83 and verified according to Niemann

    Size 030 and over are painted with RAL 5010 blue epoxy-polyester powder in accordind to DIN 1843

    PC, pre-stage reduction units available for motor power up to 2,2kW and size up to 090

    Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRV+NRV, PC+NMRV

    Automated manufacturing process not only guaratees fast service, but also reliability and quality

    Options: torque arm, output flange, output shaft kit, cover, double extention high speed shaft
