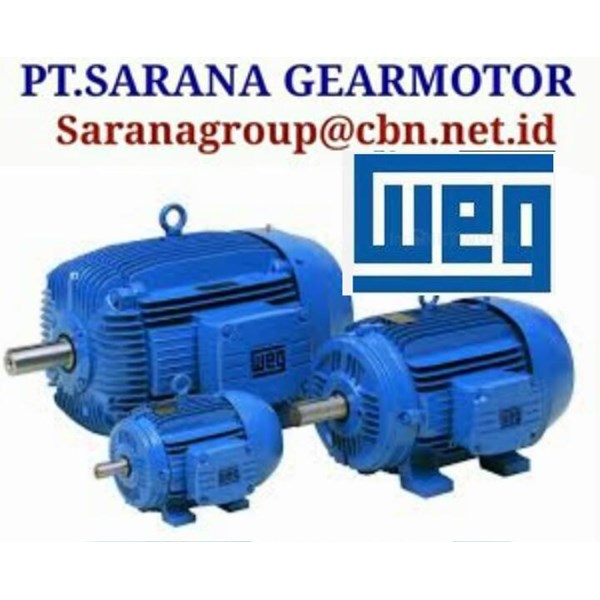

Three-Phase: W22 IE2 IEC Tru-Metric - TEFC (IP55) Cast Iron frame
Efficiency Level: IE2 according to IEC 60034-30 (Equivalent to NEMA High Efficiency - EPAct)
Data & Drawings
General information
Data & Drawings
CAD Library - 2D / 3D drawings
Download Center
Brochures (20)
Case Study (32)
Quick Guides (2)
Technical Articles (1)
Technical Manuals (3)
Training (1)
Videos (2)
Standard Features
High efficiency - complying with IE2 efficiency levels according to IEC60034-30
Output: 0,12 up to 500kW
Number of Poles: 2, 4, 6 and 8
frames: 63 up to 355M/L
Mounting: F-2 / B3L(E)
Frequency: 60//50 Hz
Voltage: 460//220-240/380-415V with 6 cables for frames 63 to 100L and 460//380-415V with 6 cables for frames 112M to 355M/L
Class “F” insulation (ΔT = 80K)
Continuous duty: S1
Design N
WISE® (WEG Insulation System Evolution) insulation system - Suitable for inverter duty applications*
Ambient temperature: 40 °C, at 1000 m.a.s.l
Squirrel cage rotor / Aluminium die cast
V'Ring seal for frames 63 to 200L and WSeal® for frames 225S/M to 355M/L
Stainless steel nameplate AISI 316
Fan Covers: steel made for frames 63 to 132M/L and cast iron made for frames 160M to 355A/B
Regreasing nipple for frames 160M to 355M/L
Metric threaded cable entries on the terminal box
Color: RAL 5009 - Blue
